2009/02/20

Problems running dot: exit code=-1, command='dot'

As I used Doxygen to generate source code docuemt, I failed to generate graphs and got this kind of error message: Problems running dot: exit code=-1, command='dot', arguments='"classcom_1_1htc_1_1hr_1_1tree_1_1_department_table_bean_50f82c9386b01669779a1524b380b355_cgraph.dot" -Tpng -o "classcom_1_1htc_1_1hr_1_1tree_1_1_department_table_bean_50f82c9386b01669779a1524b380b355_cgraph.png"'

I spent lots of time to resolve this odd issue, and found out its result from the wrong GraphViz version. I cannot use the latest version. As I tried graphviz-2.12.exe this version, all problems were gone. You can go to here to download this verion: http://www.graphviz.org/pub/graphviz/stable/windows/

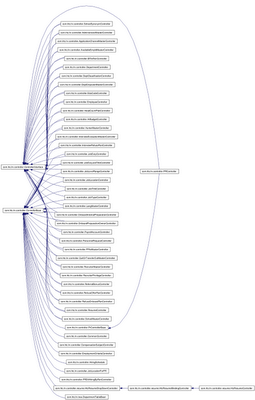

Here is class hierarchy:


Here is call graph:

2009/02/18

Applied Apache Trinidad to show organization chart

Technology: Apache Trinidad, JPA

Web Container: Glassfish

Demo
1. enter personnel request application form page


2. launch popup window to show the organization chart


3. return the selected department back to original page


sequence diagram



trinidad page -- caller page


trinidad page -- popup window



PersonnelRequestController



DepartmentTableBean




you can also check the developer guide for futher information: http://myfaces.apache.org/trinidad/devguide/tree.html

2009/02/17

java.sql.SQLException: OALL8 is in an inconsistent state

Technology: Apache Trinidad, JPA

Web Container: glassfish

Database:
Oracle 10g


Scenario:
As I execute some functions, then it will get this error message

[#|2009-02-03T11:22:52.620+0800|INFO|sun-appserver9.1|javax.enterprise.system.stream.out|_ThreadID=15;_ThreadName=httpSSLWorkerThread-8080-1;|[TopLink Warning]: 2009.02.03 11:22:52.620--UnitOfWork(2726974)--Exception [TOPLINK-4002] (Oracle TopLink Essentials - 2.0.1 (Build b04-fcs (04/11/2008))): oracle.toplink.essentials.exceptions.DatabaseException
Internal Exception: java.sql.SQLException: OALL8 is in an inconsistent state
Error Code: 17447
Call: SELECT ID, JOB_LOC_ENG_DESC, JOB_LOC_INFORM_ENG_DESC, DOMAIN, IS_JOB_LOC, CREATETIMESTAMP, IS_INTERVIEW_LOC, JOB_LOC_NATIVE_DESC, IS_ONBOARD_LOC, JOB_LOC_INFORM_NATIVE_DESC, JOB_LOCATION_CODE, MODIFYTIMESTAMP, MODIFIER, CREATOR FROM RSDB.JOB_LOCATION WHERE (ID = ?)
bind => [22612]
Query: ReadObjectQuery(com.htc.hr.entity.JobLocation)
|#]


Root Cause: I put collection object into hashCode function, it's the root cause to cause this error. Just remove it.

Set up a simple way to backup testing server database



1. write an ant build file to generate dump file and copy to remote machine (on a daily basis)

















2. create a batch file to execute my build script

3. add this batch file to scheduler service


4. result
[local machine]


[remote machine]
